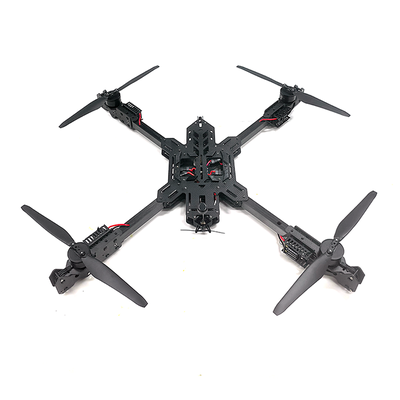

ArcoSky 36-Inch Heavy Lift FPV Drone 20KM Range 20KG Payload
| MOQ: | 5 |
| Standard Packaging: | PB |
| Delivery Period: | 7-10days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 5000/month |
Detail Information
Place of Origin
Bangladesh
Brand Name
ArcoSky
Highlight:
36-inch heavy lift FPV drone
,FPV drone with 20KM range
,20KG payload FPV drone
Product Description
Max Distance
20KM
Max Payload
20000g
Max Speed
100KM/H
battery
12S 33000mAh
Support & Trade
MOQ
1 Unit
Lead Time
7–15 Days (Typical)
Warranty
12 Months (Typical)
Customization
Available
Edit values to match your actual offer.
Detail Information
Basic
Brand Name ArcoSky
Model Number
Performance
Max Take Off Weight 34000g
Max Distance 20KM
Max Speed 100KM/H
Max Altitude 5000M
Payload & Camera
Max Payload 20000g
Rated Payload 18000g
Camera CAPRO 1500TVL FPV camera Optional: 1500TVL, 1800TVL, Thermal Imaging Camera
Electronics
Flight Controller ArcoSky ASF02 F722 Optional: INAV, ArduPilot / PX4, AI
ESC ArcoSky ASE06 120A Single ESC
VTX ArcoSky Glyph V4 5.8G 5W Optional: Frequency 1.2G-7G, Power 1.6W-10W, Digital VTX
GPS No GPS Optional: YES
Antenna ASA01 Mushroom Antenna 150mm
Build
Net Weight 6400g
Material Carbon Fiber
Frame Arco36
Size 945*945*125mm
Wheelbase 1100mm
Motor ArcoSky 620 260KV
Propeller 2282 (PC)
Recommended Battery Lipo Battery 12S 33000mAh 10-25C XT60 Plug*2pcs
Packing Information (1000PCS)
| Item | Size/Box | Weight/Box | QTY/Box | Total |
|---|---|---|---|---|
| FPV Body including Electronic Parts | 52*50*60cm | 2kg | 70pcs/box | 100 boxes |
| FPV Arm with Motors | 52*50*60cm | 4kg | 7pcs/box | 143 boxes |
| FPV Propellers | 56*45*41cm | 50kg | 100pcs/box | 10 boxes |
Comparison
| Model | Range | Payload | Speed | Altitude |
|---|---|---|---|---|
| AS221X8PRO | 20KM | 20000g | 100KM/H | 5000M |
| Other Model | — | — | — | — |
Replace “Other Model” row with your real models.
FAQ
What flight controller firmware options are supported?
Optional: INAV, ArduPilot / PX4, AI.
Can I customize the camera and VTX?
Yes. Camera/VTX options can be configured based on your requirements.
Do you provide after-sales technical support?
Yes. Technical documentation and support are available.
