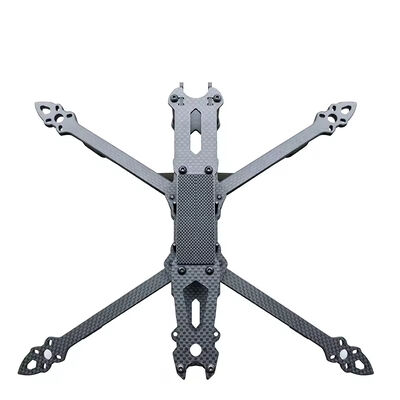

7 Inch FPV Drone Frame Carbon Fiber Frame 310mm Wheelbase 30.5mm Stack

7 Inch FPV Drone Frame Carbon Fiber Frame 310mm Wheelbase 30.5mm Stack

MOQ: 5
Price: 15
Standard Packaging: PB
Delivery Period: 5-10 work days
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity: 50000 pcs/mo.
Detail Information
Place of Origin
Bangladesh
Brand Name
ArcoSKY
Model Number
Arco7 7inch Frame
Wheelbase:
310mm
Propellers:
7inch
Size:
276*241*42mm
Weight:
Weight
Top Plate Thickness:
2.0mm
Middle Plate Thickness:
3.0mm
Bottom Plate Thickness:
3.0mm
Arm Thickness:
6.0mm
Internal Void Height:
25mm
Installation Hole Spacing Of Camera:
20*20mm/30.5*30.5mm
Installation Hole Spacing Of Flight Control:
20*20mm/30.5*30.5mm
Flight Control:
F405 / F722 / H743
Motor:
2807 1300KV
ESC:
20-60A
Highlight:

FPV Drone Frame 310mm

,

7 Inch FPV Drone Frame

Product Description
Model
Arco7 7inch Frame
Material
Carbon Fiber
Wheelbase
310mm
Weight
about 190g
Support & Trade
MOQ
1 Unit
Lead Time
7–15 Days (Typical)
Warranty
12 Months (Typical)
Customization
Available
Edit values to match your actual offer.
Detail Information
Basic
Product ArcoSky FPV Frame
Model Arco7 7inch Frame
Material Carbon Fiber
Dimensions
Wheelbase 310mm
Propellers 7inch
Size 276*241*42mm
Weight about 190g
Internal void height 25mm
Plates & Arms
Top plate thickness 2.0mm
Middle plate thickness 3.0mm
Bottom plate thickness 3.0mm
Arm thickness 6.0mm
Installation
Camera hole spacing 19mm
VTX hole spacing 20*20mm/30.5*30.5mm
Flight Control hole spacing 20*20mm/30.5*30.5mm
Comparison
Model Wheelbase Propellers Weight Material
Arco7 7inch Frame 310mm 7inch about 190g Carbon Fiber
Other Model
Replace “Other Model” row with your real models.
FAQ
Are you a factory or a trading company?
Professional manufacturer for FPV Drones and Accessories.
How many can you make for FPV each month?
80,000 PCS FPV Drone each month.
Whats the lead-time for 2000pcs FPV Drones?
Around 2-3 weeks, but need to check before order.
How many samples do you suggest to order?
Extrusion damage may occur during transportation. It is recommended to order more than two samples
What about the after-sale service?
Free to change if it doesn't work.
Can you accept OEM?
Yes, we can accept OEM, manufacture according to your requirement.
What are your Delivery terms?
We accept EXW, FOB, CFR, CIF. You can choose the one which is most convenient or cost effective for you.
What are your main produced items?
FPV Drones, Drone parts, Drone accessories, FPV drones Batteries.
What is the payment terms?
T/T BankTransfer, L/C, Western union and Trade Assurance.
What propeller size is supported?
This frame supports 7inch propellers.
What mounting patterns are supported for VTX and Flight Controller?
VTX/FC mounting: 20*20mm and 30.5*30.5mm.
Is customization available?
Yes. Customization is available based on your requirements.
