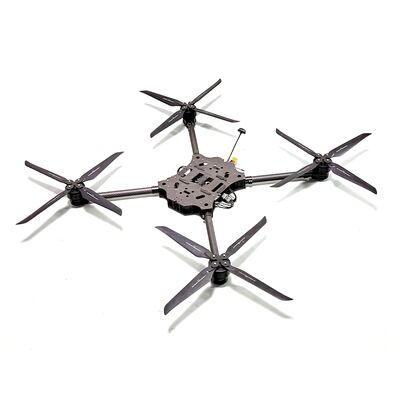

18 Inch Heavy Lift FPV Drone Payload 20kg Long Distance 20KM 12S 22000mAh
| MOQ: | 1 |
| Price: | 839 |
| Standard Packaging: | PB |
| Delivery Period: | 5-10 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 50000 pcs/mo. |
Detail Information
Place of Origin
Bangladesh
Brand Name
ARCOSKY
Model Number
AS181PRO
Power:
Battery
Flight Controller:
Multi-axis Gyroscope
Flight Mode:
NO GPS
Vrx:
2.4G 3.3G 915MHZ
Product:
FPV Drone
Waypoints:
Yes
Fpv:
18inch X4 Inches
Net Weight:
3950g
Motor:
ArcoSky 6218-200KV
Max Take Off Weight:
27000g
Rated Payload:
13000g
Max Payload:
18000g
Max Distance:
20km
Max Speed:
110km/h
Frame:
Arco18
Size:
693*693*45mm
Wheelbase:
900mm
Propellers:
1960
ESC:
ArcoSky ASE05 120A 4-in-1
Camera:
CAPRO 1500TVL FPV Camera (Optional: 1500TVL, 1800TVL, Thermal Imaging Camera)
Recommended Battery ::
Lipo Battery 12S 22000mAh 10-25C XT90S Plug
Highlight:
Heavy Lift FPV Drone 20kg
,12S FPV Drone 22000mAh
,18 Inch FPV Drone
Product Description
Max Distance
20KM
Max Payload
20000g
Max Speed
110KM/H
battery
12S 22000mAh
Support & Trade
MOQ
1 Unit
Lead Time
7–15 Days (Typical)
Warranty
12 Months (Typical)
Customization
Available
Edit values to match your actual offer.
Detail Information
Basic
Brand Name ArcoSky
Model Number AS181PRO
Performance
Max Take Off Weight 27000g
Max Distance 20KM
Max Speed 110KM/H
Max Altitude 5000M
Payload & Camera
Max Payload 20000g
Rated Payload 13000g
Camera CAPRO 1500TVL FPV camera Optional: 1500TVL, 1800TVL, Thermal Imaging Camera
Electronics
Flight Controller ArcoSky ASF02 F722 Optional: INAV, ArduPilot / PX4, AI
ESC ArcoSky ASE05 120A 4-in-1
VTX ArcoSky Glyph V4 5.8G 5W Optional: Frequency 1.2G-7G, Power 1.6W-10W, Digital VTX
GPS No GPS Optional: YES
Antenna ASA01 Mushroom Antenna 150mm
Build
Net Weight 3950g
Material Carbon Fiber
Frame Arco18
Size 693*693*45mm
Wheelbase 900mm
Motor ArcoSky 6218 200KV
Propeller 1960 (PC)
Recommended Battery Lipo Battery 12S 22000mAh 10-25C XT90S Plug
Packing Information (1000PCS)
| Item | Size/Box | Weight/Box | QTY/Box | Total |
|---|---|---|---|---|
| FPV Body including Electronic Parts | 52*35*43.5cm | 12kg | 7pcs/box | 143 box |
| FPV Arm with Motors | 52*35*43.5cm | 14kg | 7sets/box | 143 box |
| FPV Propellers | 56*45*41cm | 35kg | 50pcs/box | 20 boxes |
Comparison
| Model | Range | Payload | Speed | Altitude |
|---|---|---|---|---|
| AS181PRO | 20KM | 20000g | 110KM/H | 5000M |
| Other Model | — | — | — | — |
Replace “Other Model” row with your real models.
FAQ
What flight controller firmware options are supported?
Optional: INAV, ArduPilot / PX4, AI.
Can I customize the camera and VTX?
Yes. Camera/VTX options can be configured based on your requirements.
Do you provide after-sales technical support?
Yes. Technical documentation and support are available.
