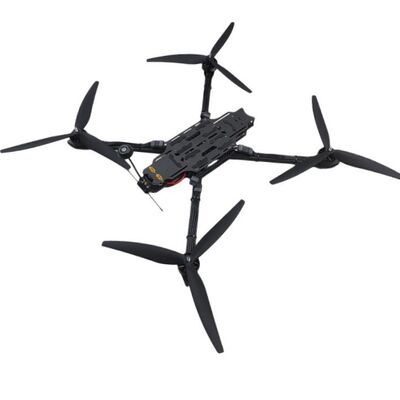

15KM Long Distance 13 Inch FPV Drones Payload 7kg Thermal Imaging Camera 256
| MOQ: | 1 |
| Price: | 159 |
| Standard Packaging: | PB |
| Delivery Period: | 5-10 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union, |
| Supply Capacity: | 50000 pcs/mo. |
Detail Information
Place of Origin
Bangladesh
Brand Name
ArcoSky
Model Number
AS132TC2
Max Take Off Weight:
4000g
Max Distance:
16KM
Max Payload:
3000g
Max Speed:
160KM/H
Rated Payload:
2000g
Max Altitude:
6000M
Flight Controller:
ArcoSky ASF01 F405 (Optional: INAV, ArduPilot / PX4, AI)
ESC:
ArcoSky ASE01 50A 4-in-1 (Optional: 55A, 60A)
VTX:
ArcoSky Glyph V4 5.8G 3W (Optional: Frequency: 1.2G-7G, Power: 1.6W-10W, Digital VTX)
Camera:
Thermal Imaging Camera 256 (Optional: 1200TVL, 1500TVL, 1800TVL, AICamera)
GPS:
No (Optional: YES)
Material:
3K T300 Carbon Fiber
Motor:
ArcoSky 2807 1350KV
Propeller:
7035 (PC)
Recommended Battery:
6S 8000 10-50C XT60 Plug
Frame:
Arco13
Highlight:
Long Distance FPV Drones
,15KM FPV Drones
,13 Inch FPV Drone 7kg
Product Description
Battery Performance
| Battery 6S (mAh) |
0 Kg (Mins) |
1 Kg (Mins) |
2 Kg (Mins) |
Max (Km/h) |
Max (KM) |
Max Altitude (M) |
|---|---|---|---|---|---|---|
| 8000 | 0 | 14 | 12 | 160 | 16 | 6000 |
Frame Details
| FPV (g) |
Frame (g) |
WB (mm) |
Size (mm) |
Top (mm) |
Middle (mm) |
Bottom (mm) |
Side (mm) |
Arm (mm) |
Inner Height (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 540 | 180 | 319 | 276*242*45 | 2 | 3 | 2 | 2 | 6 | 25 |
1000PCS Packing Information
| Model | Description |
|---|---|
| 13" | FPV Body including Electronic Parts |
| FPV Arm with Motors | |
| FPV Propellers with Accessories | |
| Total |
