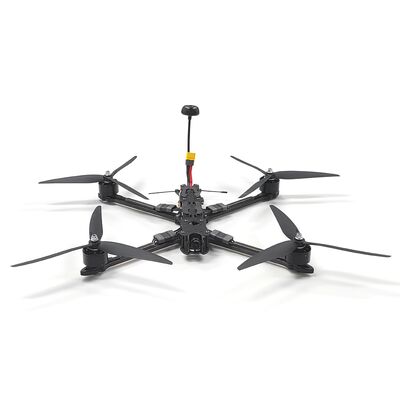

4kg Payload 10 Inch FPV Drones Speed 153km/h Long Distance Drones 20KM
| MOQ: | 1 |
| Price: | 209 |
| Standard Packaging: | PB |
| Delivery Period: | 5-10 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 50000 pcs/mo. |
Detail Information
Place of Origin
Bangladesh
Brand Name
ARCOSKY
Model Number
AS101PRO
Net Weight:
793g
Material:
Carbon Fiber
Frame:
Arco10
Size:
345*295*60mm
Wheelbase:
395mm
Propellers:
1050 (PC)
Motor:
ArcoSky 3115 900KV
GPS:
No GPS
Antenna:
ASA01 Mushroom Antenna 150mm
VTX:
ArcoSky Glyph V4 5.8G 3W (Optional Frequency: 1.2G-7G, Power: 1.6W-10W, Digital VTX)
Flight Controller:
ArcoSky ASF01 F405 (Optional: INAV, ArduPilot / PX4, AI)
ESC:
ArcoSky ASE02 60A 4-in-1 (Optional: 50A, 60A)
Camera:
CAPRO 1500TVL FPV Camera (Optional: 1500TVL, 1800TVL, Thermal Imaging Camera)
Recommended Battery:
Lipo Battery 6S 10000mAh 10-50C XT60 Plug
Max Take Off Weight:
6000g
Rated Payload:
3000g
Max Payload:
4000g
Max Distance:
20km
Max Speed:
153km/h
Highlight:
4kg FPV Drones
,FPV Drones 153km/h
,Long Distance Drones 20KM
Product Description
Max Distance
20KM
Max Payload
4000g
Max Speed
153KM/H
battery life
6S 10000mAh
Support & Trade
MOQ
1 Unit
Lead Time
7–15 Days (Typical)
Warranty
12 Months (Typical)
Customization
Available
Edit values to match your actual offer.
Detail Information
Basic
Brand Name ArcoSky
Model Number AS101PRO
Performance
Max Take Off Weight 6000g
Max Distance 20KM
Max Speed 153KM/H
Max Altitude 5000M
Payload & Camera
Max Payload 4000g
Rated Payload 3000g
Camera CAPRO 1500TVL FPV camera Optional: 1500TVL, 1800TVL, Thermal Imaging Camera
Electronics
Flight Controller ArcoSky ASF01 F405 Optional: INAV, ArduPilot / PX4, AI
ESC ArcoSky ASE02 60A 4-in-1 Optional: 50A, 60A
VTX ArcoSky Glyph V4 5.8G 3W Optional: Frequency 1.2G-7G, Power 1.6W-10W, Digital VTX
GPS No GPS Optional: YES
Antenna ASA01 Mushroom Antenna 150mm
Build
Net Weight 793g
Material Carbon Fiber
Frame Arco10
Size 345*295*60mm
Wheelbase 395mm
Motor ArcoSky 3115 900KV
Propeller 1050 (PC)
Recommended Battery Lipo Battery 6S 10000mAh 10-50C XT60 Plug
Packing Information (1000PCS)
| Item | Size/Box | Weight/Box | QTY/Box | Total |
|---|---|---|---|---|
| FPV Body including Electronic Parts | 59*38*34cm | 15kg | 50pcs/box | 20 boxes |
| FPV Arm with Motors | 59*38*34cm | 23.5kg | 32sets/box | 32boxes |
| FPV Propellers | 56*45*41cm | 12kg | 100pcs/box | 10 boxes |
Comparison
| Model | Range | Payload | Speed | Altitude |
|---|---|---|---|---|
| AS101PRO | 20KM | 4000g | 153KM/H | 5000M |
| Other Model | — | — | — | — |
Replace “Other Model” row with your real models.
FAQ
What flight controller firmware options are supported?
Optional: INAV, ArduPilot / PX4, AI.
Can I customize the camera and VTX?
Yes. Camera/VTX options can be configured based on your requirements.
Do you provide after-sales technical support?
Yes. Technical documentation and support are available.
