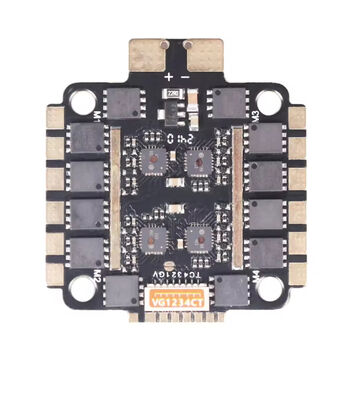

60A Drone FC Flight Controller Stack STM32F405 16MB Black Box ICM42688 4-6S
| MOQ: | 10 |
| Price: | 52.09 |
| Standard Packaging: | PB |
| Delivery Period: | 5-10 work days |
| Payment Method: | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 50000 pcs/mo. |
Detail Information
Place of Origin
Bangladesh
Brand Name
ArcoSKY
Model Number
ArcoF405
MCU:
STM32F405
Firmware:
FLAOF405X8
Black Box:
16MB Flash
Gyroscope:
ICM42688-P
Barometer:
Built-in
GPS:
Support
FPV CAM:
Support
VTX Direct Plug:
Support
UART Serial Port:
6
Highlight:
60A Drone FC Flight Controller
,Drone FC STM32F405
Product Description
Key Attributes
Compatible Brand
ArcoSky Others
Material
Metal
Private Mold
Yes
Place of Origin
Bangladesh
Brand Name
ArcoPV
Detail Information
Controller & Firmware
Model Name F405 60A Flight Control
Firmware FLAOF405X8
MCU STM32F405
OSD Chip AT7456E
Black Box 16MB Flash
Sensors & Support
Gyroscope ICM42688-P
Barometer Built-in
GPS Support
FPV CAM Support
VTX Direct Plug Support
UART Serial Port 6
Power & Dimensions
Input Voltage 4-6S Lipo (14.8-26.1V)
BEC 5V/10V
Size 36x36x7.8mm
Mounting Hole 30.5x30.5mm M3
Weight 7g
Electronic Speed Control (ESC)
Continuous Current 60A
Peak Current 70A
Supported Batteries 6S Lipo
ESC Firmware 32bit
Supported Protocols Oneshot125/Oneshot42/Multishot/Dshot 150/300/600/1200
Motor Setup
Motor 6 Motors / Y6
Packaging & Delivery
Selling Units Single item
Single Package Size 10X10X10 cm
Single Gross Weight 0.130 kg
