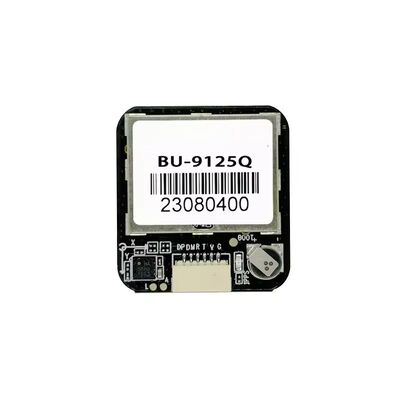

Flight Control Drone UAV GNSS GPS Module UBX‑M9140‑KB 1‑25Hz Compass
| MOQ: | 10 |
| Price: | 15.41 |
| Standard Packaging: | PB |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 50000 PCS/mo. |
Detail Information
Place of Origin
Bangladesh
Brand Name
ArcoSKY
Model Number
BU-9125Q
Type:
GNSS Module
Communication Interface:
Uart
Application Type:
Flight Control, Uavs, Drones
Brand:
ArcoSky
Chipset:
UBX-M9140-KB
Working Mode:
GPS & GLONASS & Galileo & BeiDou & QZSS & SBAS
Data Update Rate:
1Hz~25 Hz, 1Hz By Default
Baud Rate:
4800bps~921600bps, 9600bps By Default
Communication Type:
UART TTL
Interface:
6 Pin(GND, VCC, TX, RX, SCL, SDA)
Antenna:
25mm * 25mm * 4mm Ceramic Antenna
VCC:
5V
Highlight:
Drone GNSS GPS Module
,UAV GNSS GPS Module
,UBX‑M9140‑KB
Product Description
Product Overview
Product Name
GNSS Module with Compass
Model Number
BU-9125Q
Brand
Arcosky
Type
GNSS Module
Application
Flight Control, UAVs, Drones
Place of Origin
Bangladesh
GNSS Specifications
Chipset
UBX-M9140-KB
Supported Systems
GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Frequency Band
1575.42 MHz – 1605 MHz
Sensitivity
-167 dBm
Positioning Accuracy
1.5 m CEP (Open Sky with SBAS)
Data Update Rate
1Hz – 25Hz (Default 1Hz)
Communication & Interface
Communication Type
UART TTL
Baud Rate
4800 bps – 921600 bps (Default 9600 bps)
Interface
6 Pin (GND, VCC, TX, RX, SCL, SDA)
Compass
QMC5883
Hardware Specifications
Module Dimensions
27.0 × 26.0 × 8.5 mm
Antenna
25 × 25 × 4 mm Ceramic Antenna
Operating Voltage (VCC)
5V
Packaging & Delivery
Selling Units
Single item
Single Package Size
16 × 12 × 6 cm
Single Gross Weight
0.020 kg
