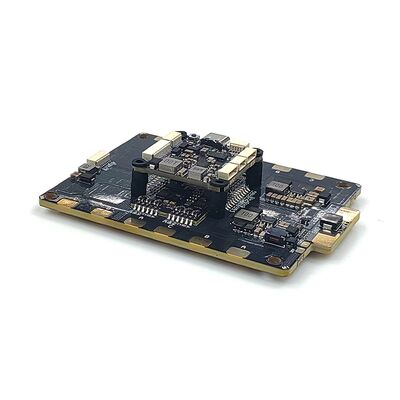

ArcoSky F722 Flight Controller 120A ESC Stack STM32F722RET6 ICM42688 3-8S BLHeli_S
| MOQ: | 5 |
| Price: | / |
| Standard Packaging: | PB |
| Delivery Period: | 5-10 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 50000pcs/mo. |
Detail Information
Place of Origin
Bangladesh
Brand Name
ArcoSKY
Model Number
STM32F722RET6
Main Control Chip:
STM32F722RET6
Gyroscope:
ICM42688P
USB:
Type-C
Barometer:
SPL06-001
OSD Chip:
AT7456E
Firmware:
BETAFLIGHT / INAV / Ardupilot
Firmware Name:
DAKEFPVF722X8
Beeper:
Support
Black Box:
16MB
LED:
Support *4
Receiver Protocol:
ELRS/CRSF/SBUS/FRSKY/FUTABAFYSKY/TBS CROSSFIRE/DSMX
Solderless Connector:
Receiver 4P, Camera 3P, Analog VTX 4P, Digital VTX 3P, ESC 8P,GPS 6P
Mounting Holes:
30.5*30.5mm/M4
Size:
36*36mm
Weight:
8g
Highlight:
120a esc 6s
,120A ESC Stack
,Flight Controller 120A ESC
Product Description
Product
F722 Flight Controller & 120A ESC
FC MCU
STM32F722RET6
ESC Current
120AX4
Mounting
30.5*30.5mm/M4
Support & Trade
MOQ
1 Unit
Lead Time
7–15 Days (Typical)
Warranty
12 Months (Typical)
Customization
Available
Edit values to match your actual offer.
Detail Information
Flight Controller (F722)
Main control chip STM32F722RET6
Gyroscope ICM42688P
USB Type-C
Barometer SPL06-001
OSD chip AT7456E
Firmware BETAFLIGHT / INAV / Ardupilot
Firmware name DAKEFPVF722X8
Beeper Support
Black Box 16MB
LED Support *4
Receiver Protocol ELRS/CRSF/SBUS/FRSKY/FUTABAFYSKY/TBS CROSSFIRE/DSMX
Solderless Connector Receiver 4P,Camera 3P,Analog VTX 4P,Digital VTX 3P,ESC 8P,GPS 6P
Mounting Holes 30.5*30.5mm/M4
Size 36*36mm
Weight 8g
ESC (120A)
MCU EFM8BB51F16G-C-QFN20R
Specs 120A
ESC Firmware BLHeli_S/Bluejay
MOS ON5C410NL
Continuous Current 120AX4
Instantaneous Current 125AX4-10S
TVS Protection Diode Yes
Capacitor 50V/4700uF Low ESR Capacitor
Protocol Dshot300/600/PWM/Bi-directional Dshot
Battery Input 3-8S Lipo
Amperemeter Support
Power Output VBAT
Mounting Holes 30.5x30.5mm/M4
Comparison
| Item | Main | Firmware | Mounting | Battery Input |
|---|---|---|---|---|
| F722 Flight Controller | STM32F722RET6 + ICM42688P | BETAFLIGHT / INAV / Ardupilot | 30.5*30.5mm/M4 | — |
| 120A ESC | 120AX4 (Continuous) | BLHeli_S/Bluejay | 30.5x30.5mm/M4 | 3-8S Lipo |
Replace table values if you have additional models to compare.
FAQ
Which firmware is supported on the F722 Flight Controller?
BETAFLIGHT / INAV / Ardupilot (Firmware name: DAKEFPVF722X8).
What battery input does the 120A ESC support?
3-8S Lipo.
Does the ESC support bi-directional Dshot?
Yes. Protocol: Dshot300/600/PWM/Bi-directional Dshot.
