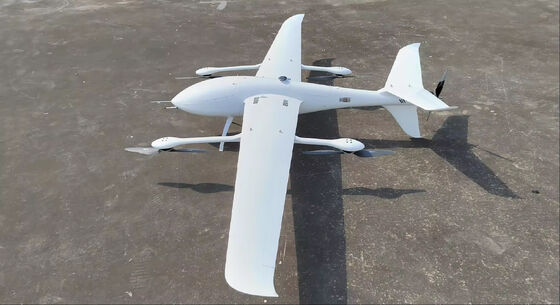

40km Long Range VTOL Fixed Wing Drones Payload 5kg Flight Time 125min
| MOQ: | 1 |
| Price: | 12423 |
| Standard Packaging: | PB |
| Delivery Period: | 5-10 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 50000 pcs/mo. |
Detail Information
Brand Name
ArcoSky
Model Number
AS132TC2
Max Take Off Weight:
4000g
Max Distance:
16KM
Max Payload:
3000g
Max Speed:
160KM/H
Rated Payload:
2000g
Max Altitude:
6000M
Flight Controller:
ArcoSky ASF01 F405 (Optional: INAV, ArduPilot / PX4, AI)
ESC:
ArcoSky ASE01 50A 4-in-1 (Optional: 55A, 60A)
VTX:
ArcoSky Glyph V4 5.8G 3W (Optional: Frequency: 1.2G-7G, Power: 1.6W-10W, Digital VTX)
Camera:
Thermal Imaging Camera 256 (Optional: 1200TVL, 1500TVL, 1800TVL, AICamera)
GPS:
No (Optional: YES)
Material:
3K T300 Carbon Fiber
Motor:
ArcoSky 2807 1350KV
Propeller:
7035 (PC)
Recommended Battery:
6S 8000 10-50C XT60 Plug
Frame:
Arco13
Highlight:
VTOL Fixed Wing Drones 5kg
,40km Long Range Fixed Wing Drones
Product Description
PDBattery Performance
| PDBattery S (mAh) | 0 Kg (Mins) | 1 Kg (Mins) | 2 Kg (Mins) | Max Speed (Km/h) | Max Range (KM) | Max Altitude (M) |
|---|---|---|---|---|---|---|
| 25000 mAh | 246 | 178 | 139 | 93 | 296 | 5000 |
FPV Physical Specifications
| FPV (g) | Frame (g) | WB (mm) | Size (mm) | Top (mm) | Middle (mm) | Bottom (mm) | Side (mm) | Arm (mm) | R. Rod (mm) | Inner Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 28 g | 180 g | 320 mm | 680 × 420 | 2 mm | 3 mm | 2.5 mm | 30 mm | 30 mm | 6 mm | 40 mm |
Packing Information
13" – 1000PCS Packing Information
| Item | Ctn Size | Weight | PCS/Ctn |
|---|---|---|---|
| FPV Body including Electronic Parts | / | / | / |
| FPV Arm with Motors | / | / | / |
| FPV Propellers with Accessories | / | / | / |
| Total | / | / | / |
