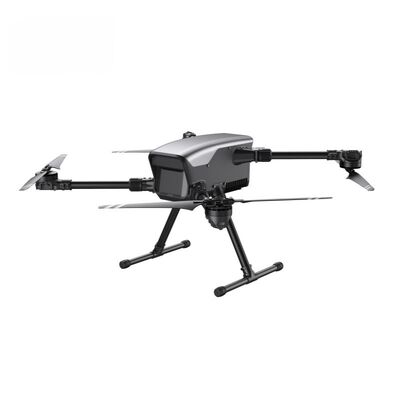

3kg Light Payload Industrial Drone Platform Multi Scenario Application Drone Frame
| MOQ: | 1 |
| Price: | 159 |
| Standard Packaging: | PB |
| Delivery Period: | 5-10 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 50000 pcs/mo. |
Detail Information
Place of Origin
BANGLADESH
Brand Name
ArcoSky
Model Number
AS132TC2
Max Take Off Weight:
4000g
Max Distance:
16KM
Max Payload:
3000g
Max Speed:
160KM/H
Rated Payload:
2000g
Max Altitude:
6000M
Flight Controller:
ArcoSky ASF01 F405 (Optional: INAV, ArduPilot / PX4, AI)
ESC:
ArcoSky ASE01 50A 4-in-1 (Optional: 55A, 60A)
VTX:
ArcoSky Glyph V4 5.8G 3W (Optional: Frequency: 1.2G-7G, Power: 1.6W-10W, Digital VTX)
Camera:
Thermal Imaging Camera 256 (Optional: 1200TVL, 1500TVL, 1800TVL, AICamera)
GPS:
No (Optional: YES)
Material:
3K T300 Carbon Fiber
Motor:
ArcoSky 2807 1350KV
Propeller:
7035 (PC)
Recommended Battery:
6S 8000 10-50C XT60 Plug
Frame:
Arco13
Highlight:
Industrial Drone Platform 160KM/H
,3kg Industrial Drone Platform
,3kg Light Payload Drones
Product Description
Battery
PDBattery 6S 10000 mAh
Max Speed
60-80KM/H
Max Distance
10-15KM
Max Altitude
3000-5000M
Support & Trade
MOQ
1 Unit
Lead Time
7–15 Days (Typical)
Warranty
12 Months (Typical)
Customization
Available
Edit values to match your actual offer.
Detail Information
PDBattery X950 Performance
| PDBattery 6S (mAh) | 0 Kg (Mins) | 1Kg (Mins) | 2Kg (Mins) | Max (Km/h) | Max (KM) | Max Altitude (M) |
|---|---|---|---|---|---|---|
| 10000 mAh | 30-35 | 22-28 | 15-20 | 60-80 | 10-15 | 3000-5000 |
FPV Physical Specifications
| FPV (g) | Frame (g) | WB (mm) | Size (mm) | Top (mm) | Middle (mm) | Bottom (mm) | Side (mm) | Arm (mm) | R. Rod (mm) | Inner Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2000g | 2000 g | 650 mm | 650 × 650×220 | 2 mm | / | 2 mm | / | 20mm | 10 mm | ~220 mm |
Packing Information
| 13" | 1000PCS Packing Information | Ctn Size | Weight | PCS/Ctn |
|---|---|---|---|---|
| FPV Body including Electronic Parts: | ||||
| FPV Arm with Motors: | ||||
| FPV Propellers with Accessories: | ||||
| Total: | / |
Comparison
| Item | Key Spec | Value | Unit | Note |
|---|---|---|---|---|
| PDBattery 6S | Capacity | 10000 | mAh | X950 |
| 0 Kg | Flight Time | 30-35 | Mins | — |
| Max Speed | Max | 60-80 | Km/h | — |
| Max Distance | Max | 10-15 | KM | — |
| Max Altitude | Max | 3000-5000 | M | — |
Replace values if you have additional variants.
FAQ
What is the listed battery performance range?
10000mAh: 0Kg 30-35 mins, 1Kg 22-28 mins, 2Kg 15-20 mins, Max speed 60-80Km/h, Max distance 10-15KM, Max altitude 3000-5000M.
What physical specs are listed?
FPV 2000g, Frame 2000g, WB 650mm, Size 650×650×220, Top 2mm, Bottom 2mm, Arm 20mm, R. Rod 10mm, Inner Height ~220mm. Others are “/”.
Is packing information complete?
Packing rows are included but carton size/weight/PCS per carton are blank for you to fill.
