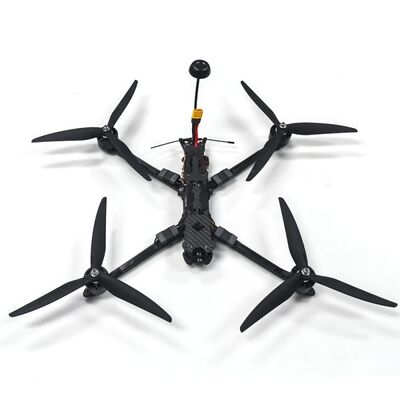

Payload 3kg Long Distance Flying Drones 15KM 10 Inch Thermal Camera FPV Drone
| MOQ: | 1 |
| Price: | 169 |
| Standard Packaging: | PB |
| Delivery Period: | 5-10 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 50000 pcs/mo. |
Detail Information
Place of Origin
Bangladesh
Brand Name
ArcoSky
Model Number
AS102TC6
Max Take Off Weight:
6000g
Max Distance:
16KM
Max Payload:
4000g
Max Speed:
154KM/H
Rated Payload:
3000g
Max Altitude:
6000M
Flight Controller:
ArcoSky ASF01 F405 (Optional: INAV, ArduPilot / PX4, AI)
ESC:
ArcoSky ASE01 60A 4-in-1
VTX:
ArcoSky Glyph V4 5.8G 3W (Optional: Frequency: 1.2G-7G, Power: 1.6W-10W, Digital VTX)
Camera:
Thermal Imaging Camera 640 (Optional: 1200TVL, 1500TVL,1800TVL, Thermal Imaging Camera)
GPS:
No (Optional: YES)
Material:
3K T300 Carbon Fiber
Motor:
ArcoSky 3115 900KV
Propeller:
1050 (PC)
Recommended Battery:
6S 10000 10-45C XT60 Plug
Frame:
Arco10
Highlight:
10 Inch Thermal Camera FPV Drone
,15KM Thermal Camera FPV Drone
,3kg Long Distance Flying Drones
Product Description
Battery Performance
| Battery 6S (mAh) |
0 Kg (Mins) |
2 Kg (Mins) |
3 Kg (Mins) |
Max (Km/h) |
Max (KM) |
Max Altitude (M) |
|---|---|---|---|---|---|---|
| 10000 | 29 | 154 | 16 | 6000 |
Frame Details
| FPV (g) |
Frame (g) |
WB (mm) |
Size (mm) |
Top (mm) |
Middle (mm) |
Bottom (mm) |
Side (mm) |
Arm (mm) |
R. Rod (mm) |
Inner Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 793 | / | 396 | 420*420*60 | / | / | / | / | / | / | / |
1000PCS Packing Information
| Model | Description | Ctn Size | Weight | PCS/Ctn |
|---|---|---|---|---|
| 10" | FPV Body including Electronic Parts | |||
| FPV Arm with Motors | ||||
| FPV Propellers with Accessories | ||||
| Total | / |
